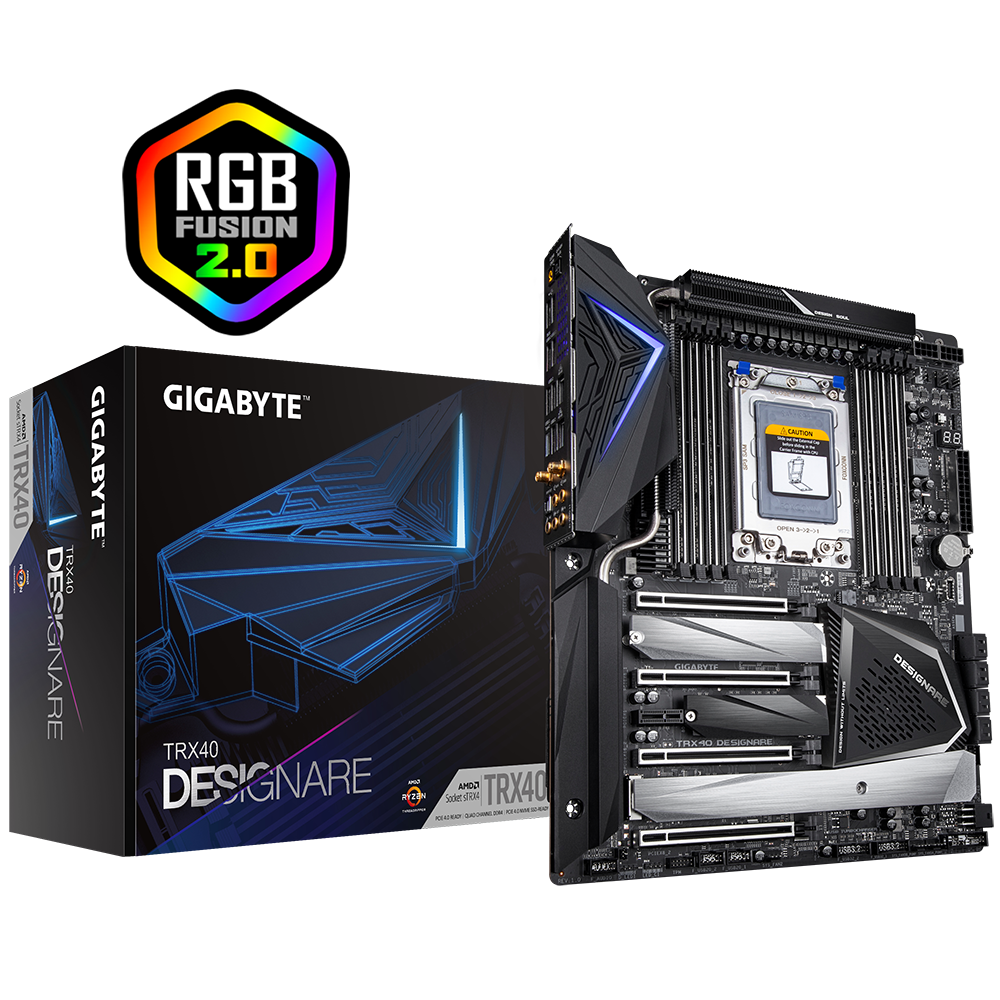

Gigabyte TRX40 DESIGNARE XL-ATX Motherboard ( AMD sTRX4 Socket, For Ryzen Threadripper 3rd Generation CPU, 8 RAM Slots, Max 256GB RAM Support )





AMD TRX40 DESIGNARE Motherboard with Direct 16+3 Phases Infineon Digital VRM, Fins-Array Heatsink, Dual Intel LAN, 4 PCIe 4.0 M.2 with Thermal Guards, Bundled GC-Titan Ridge Add-In Card and AORUS Gen4 AIC Adaptor, Intel ®  WiFi 6 802.11ax,120dB SNR AMP-UP Audio





> Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors

> Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs

> 16+3 Phases Infineon Digital VRM Solution with 70A Power Stage

> Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe

> Dual Intel® Gigabit LAN with cFosSpeed to shorten response time

> 4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards

> Onboard Intel ®  WiFi 6 802.11ax 2T2R & BT 5 with Antenna

> 120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors

> Bundled 40Gb/s GC-Titan Ridge Add-In Card

> Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2

> USB TurboCharger for Mobile Device Fast Charge Support

> RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

> Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

> Front & Rear USB 3.2 Gen 2 Type-C™ Header

> Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card



gigabyte trx40 designare specifications



Features :



gigabyte trx40 designare power design gigabyte trx40 designare io shield gigabyte trx40 designare rgb fusion
16+3 Direct Digital Power Design Integrated I/O Shield Armor RGB Fusion 2.0
TRX40 DESIGNARE motherboard uses latest new generation Infineon multiphase PWM controller, and a total 16+3 phase for vCore and SOC, all with Infineon TDA21472 Power Stage MOSFET which is capable of providing at least 70A of power from each phase, for a total of amazing 1330A. Power design is no longer a bottleneck for this motherboard. With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield. Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.
gigabyte trx40 designare smart headphone amp gigabyte trx40 designare titan ridge gigabyte trx40 designare smart fan 5
ALC1220-VB Immersive Gaming ViBes Bundled 40Gb/s GC-Titan Ridge Add-In Card Smart Fan 5
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. The fastest 40Gb/s single-wire connection With bundled GC- Titan Ridge AIC, It delivers speeds of up to 40Gb/s transfer speed that’s 2 times faster than previous generation. With Smart Fan 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard.



Technical Specifications :



CPU

AMD Socket sTRX4:
Support 3rd Generation AMD Ryzen™ Threadripper™ processors

Chipset AMD TRX40
Memory
  1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
  2. Quad Channel memory architecture
  3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Audio
  1. Realtek ®  ALC4050H codec+ Realtek ®  ALC1220-VB codec
  2. Support for DTS:X ®  Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
LAN 2 x Intel ®  GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module Intel ®  Wi-Fi 6 AX200

  1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
  2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
  3. 1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 4.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
  2. Support for NVIDIA ®  Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA ®  SLI™ technologies
Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
  2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
  2. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C)
  3. 8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB CPU:

  1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:

  1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x OC_PEG power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 2 x system fan headers
  7. 4 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 4 x M.2 Socket 3 connectors
  11. 8 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
  15. 2 x USB 3.2 Gen 1 headers
  16. 2 x USB 2.0/1.1 headers
  17. 1 x GIGABYTE GC-TITAN RIDGE Add-in Card Connector
  18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  19. 1 x power button
  20. 1 x reset button
  21. 2 x temperature sensor headers
  22. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x Clear CMOS button
  3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  4. 5 x USB 3.2 Gen 2 Type-A ports (red)
  5. 2 x USB 2.0/1.1 ports
  6. 2 x RJ-45 ports
  7. 2 x SMA antenna connectors (2T2R)
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
I/O Controller iTE ®  I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
    USB TurboCharger
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton ®  Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Operating System Support for Windows 10 64-bit
Form Factor XL-ATX Form Factor; 32.5cm x 26.9cm
