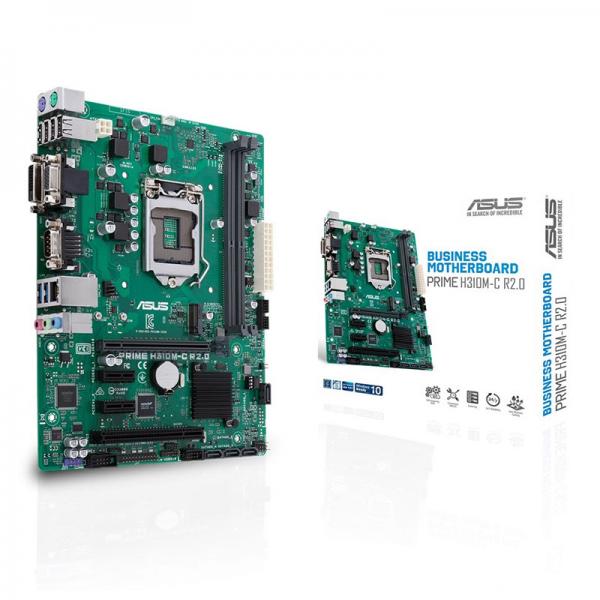

ASUS PRIME H310M-C R2.0 MOTHERBOARD (INTEL SOCKET 1151/8TH GENERATION CORE SERIES CPU/MAX 32GB DDR4 2666MHZ MEMORY)
, ,

ASUS PRIME H310M-C R2.0 MOTHERBOARD (INTEL SOCKET 1151/8TH GENERATION CORE SERIES CPU/MAX 32GB DDR4 2666MHZ MEMORY)

Availability:

99999998 in stock
Compare

ZERO PAYMENT GATEWAY CHARGES
FREE TRANSIT INSURANCE

₹5,968.50

99999998 in stock

Compare

FEATURES

BUSINESS MOTHERBOARD

ASUS is the world’s biggest and best-known motherboard brand. Famous for user-focused Designed Thinking, we understand the importance of security, stability and easy manageability for your business. Our latest lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Combined with our world-class after-sales service and guaranteed long-term availability to maximize your investment over the product lifecycle, ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs.

Internationally Certified Business Motherboard

ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, including UL and Blue Angel, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

ASUS Trouble Shooting Solution

ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.

ASUS Commercial BIOS Kit

ASUS understands how important a customized product impacts users’ mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

SPECIFICATIONS

CPU Intel® for 8 th  Generation Core ™  Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel® H310
Memory 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphic Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : DVI-D/RGB ports
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 2 displays simultaneously
Expansion Slots 1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1
1 x PCI
Storage Intel® H310 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
4 x SATA 6Gb/s port(s)
LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC * 1
– Supports : Jack-detection, Front Panel Jack-retasking
USB Ports Intel® H310 Chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , Type-A, 2 at mid-board)
Special Features Bespoke Motherboard Design & Business Focused Features :
– ASUS Self Recovering BIOS:  Automatically recover BIOS update once crash happen
– ASUS Event Log:  Record activities of system and provides information in BIOS
– ASUS Commercial BIOS kit:  Speed up BIOS update solutionby partial BIOS design
– Anti-Moisture:  Against moisture and corrosion — prolonging the life of your motherboard
– 24/7 Reliability:  Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design:
– Fixed-position&Color-coded Connectors:  Enable easy identification and cable-matching, speeding up the production line
– Box Headers:  USB headers are box style, enabling fast connector installation and preventing pin damage
Digi+VRM
Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 ,
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode)
1 x LPT header
2 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x LPC Debug header
1 x Speaker connector
BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit
Manageability WOL, PXE
Support Disc Drivers
ASUS Commercial BIOS Kits
ASUS Watchdog Timer
Form Factor uATX Form Factor
9.6 inch x 7.6 inch (24.4 cm x 19.3 cm)
Warranty 3 Years
