Showing all 6 results
-
Brand Stores, Desktop Components, Gigabyte, Gigabyte, PC Peripherals, POWER SUPPLY, PSU
GIGABYTE GP-P650B 650 Watt 80 Plus Bronze Certification PSU With Active PFC ( 120mm Silent Fan, Japanese Capacitors, Single +12V Rail )
Brand Stores, Desktop Components, Gigabyte, Gigabyte, PC Peripherals, POWER SUPPLY, PSUGIGABYTE GP-P650B 650 Watt 80 Plus Bronze Certification PSU With Active PFC ( 120mm Silent Fan, Japanese Capacitors, Single +12V Rail )
GIGABYTE GP-P650B 650 Watt 80 Plus Bronze Certification PSU With Active PFC ( 120mm Silent Fan, Japanese Capacitors, Single +12V Rail )
Model P650B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC ( > 0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 9A-4A Input Frequency 50-60 Hz Output Capacity650W Dimension D150 x W140 x H86 mm Fan Type 120mm Hydraulic Bearing Fan Efficiency Up to 85% at typical load MTBF > 100,000 hours Protection OPP/UVP/OVP/SCP/OCP Regulatory CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE Connectors ATX/MB 20+4 Pin x 1
CPU/EPS 4+4 Pin x 1
PCI-e 6+2 Pin x 4, SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1SKU: GP-P650B -
Gigabyte, Gigabyte, PC Peripherals, Peripherals, POWER SUPPLY
Gigabyte P450B 80 PLUS Bronze Certified 120mm Silent Fan Power Supply Unit
Gigabyte, Gigabyte, PC Peripherals, Peripherals, POWER SUPPLYGigabyte P450B 80 PLUS Bronze Certified 120mm Silent Fan Power Supply Unit
P450B
Model P450B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC( > 0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 8-4 A Input Frequency 60-50 Hz Output Capacity 450W Dimension 150 x 140 x 86 mm Fan Type 120 mm Hydraulic Bearing (HYB) Fan 80 PLUS Bronze Efficiency 85% at typical load MTBF > 100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-500ms Hold Up Time > 16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1SKU: GP-P450B -
Desktop Components, Gigabyte, Gigabyte, Peripherals, POWER SUPPLY

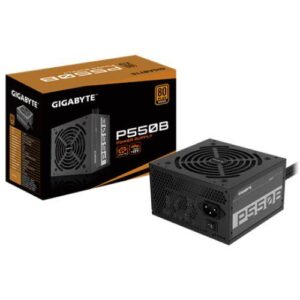

Gigabyte P550B 550 Watt 80 Plus Bronze Certification PSU With Active PFC ( 120mm Silent Fan, Japanese Capacitors, Single +12V Rail )
Desktop Components, Gigabyte, Gigabyte, Peripherals, POWER SUPPLYGigabyte P550B 550 Watt 80 Plus Bronze Certification PSU With Active PFC ( 120mm Silent Fan, Japanese Capacitors, Single +12V Rail )
P550B
Model P550B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC( > 0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 8-4 A Input Frequency 60-50 Hz Output Capacity 550W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing (HYB) Fan 80 PLUS Bronze Efficiency 85% at typical load MTBF > 100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-500ms Hold Up Time > 16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1SKU: GP-P550B -
Gigabyte, Gigabyte, PC Peripherals, POWER SUPPLY
Gigabyte P750GM 750 Watt 80 Plus Gold Fully Modular PSU ( GP-P750GM )
Gigabyte, Gigabyte, PC Peripherals, POWER SUPPLYGigabyte P750GM 750 Watt 80 Plus Gold Fully Modular PSU ( GP-P750GM )
Gigabyte P750GM 750 Watt 80 Plus Gold Fully Modular PSU ( GP-P750GM )
Model GP-P750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC ( > 0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6 A Input Frequency 60-50 Hz Output Capacity 750W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing ( HYB ) fan 80 PLUS Gold Efficiency 90% at typical load MTBF > 100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-500ms Hold Up Time > 16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+120mm *1SKU: GP-P750GM -
Gigabyte, Gigabyte, PC Peripherals, POWER SUPPLY

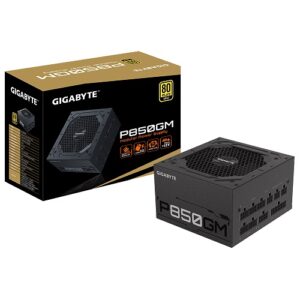

Gigabyte P850GM 850 Watt 80 Plus Gold Fully Modular PSU ( GP-P850GM )
Gigabyte, Gigabyte, PC Peripherals, POWER SUPPLYGigabyte P850GM 850 Watt 80 Plus Gold Fully Modular PSU ( GP-P850GM )
Gigabyte P850GM 850 Watt 80 Plus Gold Fully Modular PSU ( GP-P850GM )
Model GP-P850GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC ( > 0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6 A Input Frequency 60-50 Hz Output Capacity 850W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing ( HYB ) fan 80 PLUS Gold Efficiency 90% at typical load MTBF > 100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-500ms Hold Up Time > 16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+150mm *1SKU: GP-P850GM
